Series

Characteristics

The compact Series 18 from EAO is especially suited for:

• Flush design
• Raised design
• PCB (with adaptor)

The low level switching element is laid out for low current applications.

Functions

The Series 18 incorporates the following functions:

• Indicator
• Pushbutton (Mechanical lifetime: up to 2 million operations)
• Illuminated pushbutton (Mechanical lifetime: up to 2 million operations)

Market segments

The EAO Series 18 is especially suited for applications in the segments:

• Audio and video
• Laboratory and measuring equipment

Characteristics

The compact 8 mm Series 19 from EAO is especially suited for:

• Raised design
• PCB (with adaptor)

The low level switching element is laid out for low current applications.

Functions

The Series 19 incorporates the following functions:

• Indicator
• Pushbutton (Mechanical lifetime: up to 5 million operations)
• Illuminated pushbutton (Mechanical lifetime: up to 5 million operations)

Market segments

The EAO Series 19 is especially suited for applications in the segments:

• Audio and video
• Laboratory and measuring equipment

EAO Series 44, a modular system of control units, offers the user numerous combinations with its wide range of actuator elements for pushbuttons, emergency-stop pushbuttons, rotary and keylock switches, interlocking pushbuttons, potentiometer drives, illuminated pushbuttons and indicators.

At the front the actuators feature an IP 65 protection class and can be supplied with mat grey or mat chrome front rings.

Characteristics

The modular 22.5 mm Series 44 is especially suited for:

• Flush design
• Raised design

Up to three of these special switching elements can be arranged next to each other and can be combined in any way on up to two levels.

Functions

The Series 44 incorporates the following functions:

• Indicator
• Pushbutton
• Double pushbutton
• Illuminated pushbutton
• E-STOP switch
• Stop switch
• Mushroom-head pushbutton
• Keylock switch
• Selector switch

Market segments

The EAO Series 44 is especially suited for applications in the segments:

• Machinery and Automation
• Construction machines and special-purpose vehicles
• Lifting and moving
• Panel building

The modular 16 mm Swisstac Series is particularly suited for:

• Raised design
• PCB mounting

The modular design of this series caters to a broad range of applications and combinations.

Functions

The series incorporates the following functions:

• Indicator
• Pushbutton
• Illuminated pushbutton
• E-STOP switch
• Stop switch
• Mushroom-head pushbutton
• Keylock switch
• Selector switch
• Buzzer

Market segments

The EAO Series Swisstac is especially suited for applications in the segments:

• Public transportation
• Machinery and Automation
• Construction machines and special-purpose vehicles
• Lifting and moving
• Panel building

EAO Series 82 offers you vandal resistant, attractive HMI operating units for use in harsh environments. Suitable for industry, public areas and access control.

The Series 82 incorporates the following functions:

• Indicator
• Pushbutton
• Illuminated pushbutton

Key advantages

• Vandal-resistant: Impact resistant to IK10
• Front protection up to IP67
• Gold contacts available for low voltages and currents
• Optional illumination and laser markings
• Excellent tactile feedback
• Long service life: > 1 million cycles of operation
• Stainless steel anodised aluminium or brass coloured switches
• 16 mm, 19 mm or 22 mm mounting

Typical application areas

• Exposed public areas: e.g. ticketing and vending machines
• Industrial: Machinery and factory equipment
• Lifting and moving: Elevators and people movers
• Building management: Access control and security systems
• Audio and video equipment
• Medical equipment
• Food Industry (corrosion and acid resistant versions available on request)

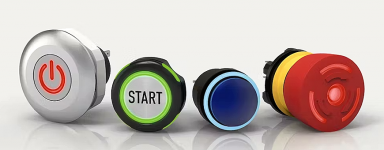

Characteristics

The compact 22.5 mm Series 84 is especially suited for:

• Flush design
• Raised design
• PCB mounting

The extremely small mounting depth makes this series highly suited for installation in flat, narrow casings. In combination with PCB fitting, Series 84 offers optional HALO illumination with attractive combination options and a wide variety of designs.

Functions

The Series 84 incorporates the following functions:

• Indicator
• Pushbutton
• Illuminated pushbutton
• E-STOP switch

Market segments

The EAO Series 84 is especially suited for applications in the segments:

• Public transport
• Machinery and Automation
• Construction machines and special-purpose vehicles
• Lifting and moving
• Panel building
• Medicinal technology
• Laboratory and measuring equipment
