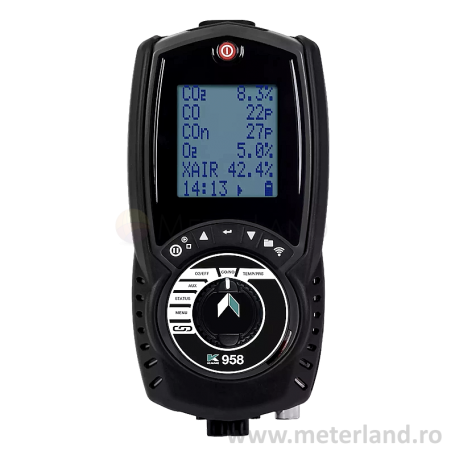

KANE 958, Commercial Boiler Analyser with KANE LINK

KANE958 Gas Analyser with direct CO, O2 and CO sensor protection

KANE 958 is a robust and easy-to-use flue gas analyzer, ideal for periodic technical checks of commercial boilers. The selection of the working mode and the setting of the parameters is done easily with the help of the rotary switch and the control keys. The menu, parameters and data are displayed on a large screen. The measurement results can be transmitted wireless to the portable thermal printer (option) or to a smart device (phone/tablet). The equipment is equipped with the KANE LINK function through which you can connect wireless with a wide range of sensors or other equipment to KANE958. Last but not least, with the purchase of a KANE958 analyzer, you benefit from the KANE CARE program facility by which the warranty is extended free of charge one year (maximum 10 years) if you send the instrument to be calibrated.

KEY Specs

• Tests domestic, commercial & industrial boilers up to 5 MW, up to 50mbar stack draught
• Latest upgradeable sensor technology O2 0-21% & CO 0-10,000ppm H2 compensated & toxic sensor options
• Easy to use rotary dial with large display
• Purge pump protection prevents accidental damage to CO sensor
• Wireless as standard - connect to optional KANE LINK enabled devices
• Hydrogen (H2) ready – up to 20% blend
• MCERTS (pending) compatible with optional KANE-GCU Gas Conditioning Unit for NO2 and SO2

Applications

• Install & service domestic oil & gas appliances – optional emission sensors for local regulations
• Commission & service industrial boilers, marine boilers, engines & compressors
• Safety checks – CO in rooms or around appliances
• Combustion performance checks
• Combustion efficiency checks
• Flue Draught

Measures

• O2 0-21% ppm
• CO 0-10,000ppm H2 compensated
• Differential temperature
• High accuracy differential pressure meter +/- 160mbar
• NO 0-5,000ppm (option)
• NO2 0-1,000ppm (option)
• High Range CO 0-10 % (option)
• SO2 0-5,000ppm (option)

Calculates

• CO2 • CO/CO2 ratio
• Excess air • Combustion efficiency
• NOx (option) • Reference gases

Fuel Types

• Natural Gas • LPG • Coke
• Butane • Light oil • Propane
• Biogas • Heavy oil • Coal
• Wood pellets

Features

• Rotary dial & 6 line display
• View, hold, store & print test results to optional KANE-IRP3 printer or KANE LIVE or 3rd party apps
• Combustion - Pressure - Temperature
• Worklight
• 10 year “no quibble” warranty when serviced & recertified by KANE

KANE LINK WIRELESS MEASUREMENT AND DATA TRANSFER

KANE CARE - Extend your KANE analyser & pressure meter’s ‘no quibble’ warranty up to 10 years by returning your analyser & pressure meter via your KAM dashboard annually

CONFIGURATIONS:

 - KANE958 Basic - Commercial boiler analyser with KANE LINK measures O2 & CO to 10,000ppm H2 compensated with over-range protection, differential temperature, 2 psi pressure sensor & water stop particle filter, pressure hose, CP2T combustion probe & USB1 charger (see below for sensor options)

 - KANE958 KIT - As KANE958 Basic plus KANE-IRP3 infra-red printer and 20106 backpack

 - KANE958 +1S KIT - As KANE958 KIT plus 1 extra sensor (NO or NO2 or SO2 or H2S)

 - KANE958 +2S KIT - As KANE958 KIT plus 2 extra sensors (NO or NO2 or SO2 or H2S)

 - KANE958 PRO KIT1 - As KANE958 KIT plus KANE-GLD leak detector, KAL1 general purpose temp probe and 2 x KPCP clamp-on pipe probes

 - KANE958 PRO KIT2 - As KANE958 PRO KIT1 with 2 x WPCP wireless clamp-on pipe probes replacing 2 × KPCP

 - KANE958 OIL KIT - As KANE958 KIT plus KANEMSP manual smoke pump with chart & SP9 smoke papers, 18121 oil gauge kit incl 300psi pressure gauge & 1.5bar vacuum gauge, vent fitting with stopcock, flexible connecting hose & 1/8” & 1/4” adaptors.
