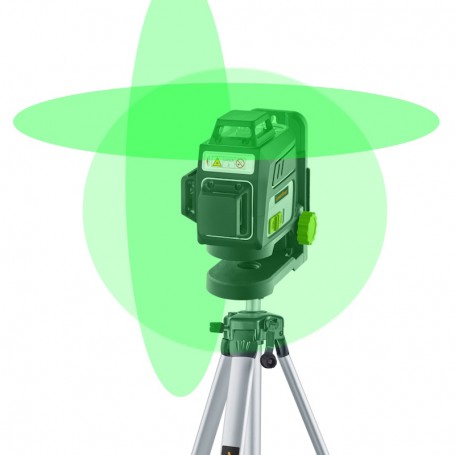

Laserliner 036.703A PocketPlane-Laser 3G Set, 3D Cross line green laser with 3 laser circles and 150cm tripod
Laserliner 036.703A (PocketPlane-Laser 3G Set) is a 3D practical laser with one horizontal and two vertical green laser circles, compact 150 cm tripod, and a comprehensive range of accessories – all you need for demanding projects.
This three-dimensional, compact and highly visible green laser aserliner 036.703A (PocketPlane-Laser 3G Set) projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is all you need for demanding projects thanks to the comprehensive range of accessories. Multi-section telescopic tripod legs and a 30 cm crank on this compact tripod provide an extensive adjustment range. The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching to walls, metal items and tripods with a 1/4” or 5/8” thread.
- Three-dimensional laser with a horizontal and two vertical 360° laser circles
- Accurate horizontal and vertical alignment of objects
- Good visibility through green laser technology
- Easy alignment of slopes with manual tilt function
- Plumb function for synchronous working on floor and ceiling
- Light and robust compact tripod 150 cm
- Crank height adjustment and telescopic tripod legs
- Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods
- Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings
- Laser enhancement glasses for optimum visibility of laser lines with the human eye
- Time-saving automatic alignment
- Integrated hand-held receiver mode for outdoor applications (option)
- Long battery operating time thanks to powerful lithium-ion rechargeable battery
- Work efficiently and charge the battery at the same time
- Rechargeable via USB-C cable
- Visual signals indicate when the device is outside its self-levelling range
- Pendulum restraint for safe transport
- Accuracy
- ± 0.3 mm / m
- Measuring functions
- Self levelling range ± 3.5° (horizontal)
- Power
- Li-ion battery pack 3.7V
- Complete with
- Tripod 150cm, support PocketWall, glasses, Li-ion battery, adapter 230Vac, transport case
- Operating temperature range (°C)
- 0 °C … 50 °C
- Dimensions (L x l x H)
- 104 x 97 x 76 mm
- Weight
- 388 g
- Working distance / Visibility (m)*
- 30 m
