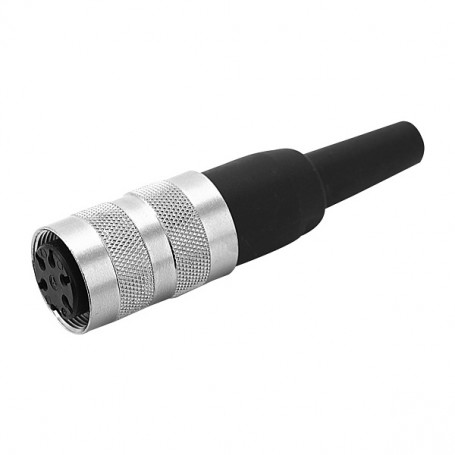

Amphenol C091A T-3476-001, Female cable connector 7 solder contacts, screw locking, IP40

Amphenol C091 Family

Amphenol signal|mate® M16-A (C091) series circular connectors are recognized industry standard for compact signal and power transmission. The M16-A (C091) series provides IP40 protected metal connectors with industry standard M16 screw locking and is a reliable and cost efficient interconnect solution for indoor applications.

The series features 2-8 and 12-19 pin connectors. For contact plating, our customers can choose between silver, flash gold (NEW) and hard gold for crimping and soldering. Furthermore, there are different solutions for direct connection to the PCB.

Product features:

• Protection class IP40 when mated
• M16 screw locking according to IEC 61076-2-106
• Metal housing with shielding connection (via clamp)
• 13 contact arrangements on a shell size of Ø18mm
• From 2 to 19 pin for signal and power transmission
• Current transmission up to 10A at 300V AC/DC
• Wire cross-section 0.05-1mm² / AWG 30-20
• Colored backshells available as accessory
• Qualified according to UL1977 / certificate number E63093

M16 circular connectors of the signal|mate series are used e.g. in the fields of industrial automation, lighting, control systems, camera technology as well as measurement. The connection solutions are compatible with competitor products.
