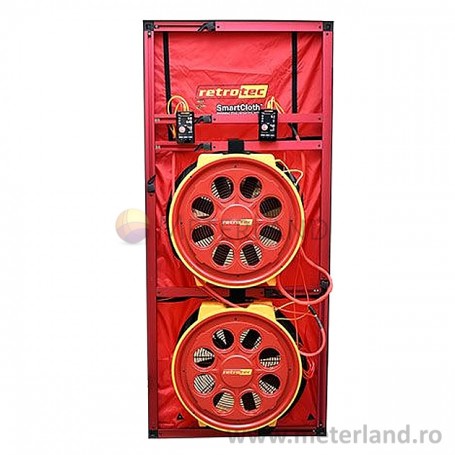

Retrotec EU5210X-E, Dual Blower Door System
Retrotec EU5210X-E is a dual blower door system for testing houses and commercial spaces.
RETROTEC EU5210XE | Dual Blower Door System for Residential & Commercial Spaces
Test any residential house. Complete with the newly released DM32X gauge, a fan, 6 ranges, connectors, software and a 10-year warranty on the fan shell. Fully automatic and manual operation. Quick connect frame with extra crossbar for stability and gauge mounting. Everything included.
Who uses it?
Energy Auditors, HVAC Contractors, Building Contractors & Remodelers, Home Inspectors
VIDEO | How To Run A Blower Door Test
RETROTEC EU5210X-E includes now the new manometer with smart capabilities, wireless connectivity, and a touch screen interface, RETROTEC DM32X.
Air tightness testing and building diagnostics will never be the same again with DM32X. This refreshing new testing experience will open new doors and extend your diagnostic abilities.
New Features of RETROTEC DM32X:
- Beautiful 5.5" 1080P HD OLED display with Gorilla Glass capacitive multi-touch.
- A thinner, more ergonomic shell design.
- Real-time graphic display of pressure readings over time. Taking pressure points is one thing, being able to see what’s happening tells you a more accurate story.
- Multiple datalogging options.
- Digital Signal Processing (DSP) improves pressure reading stability.
- Fast 3A charging & data transfer on USB-C Long range (10m) Bluetooth® connectivity.
- Built-in testing and training apps. Run rCloud auto testing software natively.
- Embedded & online manuals, videos, & resources.
- Operate and read competing fans.
- Photorealistic images of all devices and ranges.
Included items in RETROTEC EU5210X-E system:
2 x DM32X Gauge Package
- DM32X Gauge (Newly Released!)
- USB-C Charging Cable
- Cat5 Cable
- Gauge Case
- DM32X Magnetic Clip
- ISO17025 calibration of DM32X
- Gauge Calibration Verification Report
2 x 5000 Series Fan Set
- 5000 Series Calibrated Fan (120V/60Hz, 240V/50Hz, or 110V/50Hz)
- Range Ring A for 5000/6000 Series Fan
- B8 Plate for 5000/6000 Series Fan
- 8 x 4" Blank Plugs
- Power Cord
- 1 x Fan Cover
- System Calibration Verification Report
1 x Large SmartCloth and 50" Frame (new) - Double Fan
- 50" aluminum Frame, Red Anodized
- Large SmartCloth for 1000/2000/3000/5000/6000 Series Fan, double fan
- Fan Crossbar Strap for Aluminum Frame
- Case for Aluminum Frame
2 x Blower Door Tubing Kit including umbilical for 1000/5000/6000 Series Fan, 7 ft (2 m)
1 x Case for System Accessories
_
Video Bonus: Blower Door Test in XXXL size - Amazon in Poland
- Caracteristici ventilator
- Fan Dimensions: 63,5 x 63,5 x 24,8 cm
Fan Weight: 15,2 Kg / 16 Kg with Ring A & Plated B8 installed
Maximum Flow, per fan (60 Hz): 10874 m³/h @ free air, accuracy ± 5%
Minimum Flow (Included Range B1): 188 m³/h @ 50 Pa
Minimum Flow (Optional Range 29): 15 m³/h @ 50 Pa
Minimum Flow (Optional Range 47): 35 m³/h @ 50 Pa
Minimum Flow (Optional Range 74): 63 m³/h @ 50 Pa
Power pe fan: 240 Vca / 50 Hz / 4.9 A - Caracteristici cadru
- Frame Thickness: 1.75” (5.3 cm)
Frame Weight: 16 lbs (7.3 kg)
Frame dimensions (expanded): 51” X 109 1/4” (129.5cm X 277.5cm)
Type of Panel: Large SmartCloth, dual fan (standard) - Caracteristici manometru diferential
- 5.5" 1080P HD OLED display with Gorilla Glass capacitive multi-touch
Battery Life: 8.5 hours runtime
Networking: Wi-Fi, Bluetooth, Ethernet, USB 3.0 OTG Audio
Real-time graphic display of pressure readings over time
Support: Android 11
Weight: 0.88 lb / 0.39 kg
