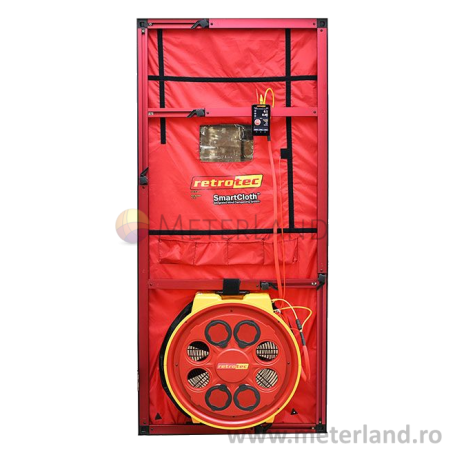

Retrotec EU5100X-E, 44" frame, Blower Door System for Residential & Small Commercial
Retrotec EU5100X-E is the most popular blower door system for testing houses and small commercial.
PROMO Package: EU5100X-E, FanTestic Pro software (Free), set of 29/47/74 adapters included (Free)
RETROTEC EU5100XE | Most Popular Blower Door System for Residential & Small Commercial
Test any residential house. Complete with the newly released DM32X gauge, a fan, 6 ranges, connectors, software and a 10-year warranty on the fan shell. Fully automatic and manual operation. Quick connect frame with extra crossbar for stability and gauge mounting. Everything included.
Who uses it?
Energy Auditors, HVAC Contractors, Building Contractors & Remodelers, Home Inspectors
VIDEO | How To Run A Blower Door Test
RETROTEC EU5100X-E includes now the new manometer with smart capabilities, wireless connectivity, and a touch screen interface, RETROTEC DM32X.
Air tightness testing and building diagnostics will never be the same again with DM32X. This refreshing new testing experience will open new doors and extend your diagnostic abilities.
New Features of RETROTEC DM32X:
- Beautiful 5.5" 1080P HD OLED display with Gorilla Glass capacitive multi-touch.
- A thinner, more ergonomic shell design.
- Real-time graphic display of pressure readings over time. Taking pressure points is one thing, being able to see what’s happening tells you a more accurate story.
- Multiple datalogging options.
- Digital Signal Processing (DSP) improves pressure reading stability.
- Fast 3A charging & data transfer on USB-C Long range (10m) Bluetooth® connectivity.
- Built-in testing and training apps. Run rCloud auto testing software natively.
- Embedded & online manuals, videos, & resources.
- Operate and read competing fans.
- Photorealistic images of all devices and ranges.
Included items in RETROTEC EU5100X-E system:
1 x DM32X Gauge Package
- DM32X Gauge (Newly Released!)
- USB-C Charging Cable
- Cat5 Cable
- Gauge Case
- DM32X Magnetic Clip
- ISO17025 calibration of DM32X
- Gauge Calibration Verification Report
1 x 5000 Series Fan Set
- 5000 Series Calibrated Fan (120V/60Hz, 240V/50Hz, or 110V/50Hz)
- Range Ring A for 5000/6000 Series Fan
- B8 Plate for 5000/6000 Series Fan
- 8 x 4" Blank Plugs
- Power Cord
- 1 x Fan Cover
- System Calibration Verification Report
1 x SmartCloth & Frame (new) - Single Fan
- Aluminum Frame, Red Anodized
- SmartCloth for 1000/2000/3000/5000/6000 Series Fan, Regular Height
- Fan Crossbar Strap for Aluminum Frame
- Case for Aluminum Frame
**Optional: 50" Large Aluminum Frame Offered At Additional Cost**
1 x Blower Door Tubing Kit including umbilical for 1000/5000/6000 Series Fan, 7 ft (2 m)
1 x Software FanTestic Pro
- Caracteristici ventilator
- Fan Dimensions: 63,5 x 63,5 x 24,8 cm
Fan Weight: 15,2 Kg / 16 Kg with Ring A & Plated B8 installed
Maximum Flow, per fan (60 Hz): 10874 m³/h @ free air, accuracy ± 5%
Minimum Flow (Included Range 29): 15 m³/h @ 50 Pa
Minimum Flow (Included Range 47): 35 m³/h @ 50 Pa
Minimum Flow (Included Range 74): 63 m³/h @ 50 Pa
Minimum Flow (Included Range B1): 188 m³/h @ 50 Pa
Power: 240 Vca / 50 Hz / 4.9 A - Caracteristici cadru
- Frame Thickness: 1.75” (5.3 cm)
Frame Weight: 16 lbs (7.3 kg)
Frame dimensions (expanded): 43 5/8” X 97 1/2” (110.8 cm X 247.6 cm)
Type of Panel: SmartCloth, single fan (standard) - Caracteristici manometru diferential
- 5.5" 1080P HD OLED display with Gorilla Glass capacitive multi-touch
Battery Life: 8.5 hours runtime
Networking: Wi-Fi, Bluetooth, Ethernet, USB 3.0 OTG Audio
Real-time graphic display of pressure readings over time
Support: Android 11
Weight: 0.88 lb / 0.39 kg
