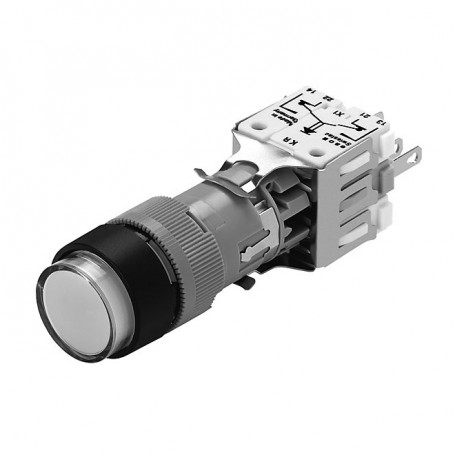

EAO 903-.000-00, Illuminated pushbutton actuator, mounting hole Ø16mm, 3NO+3NC gold contacts
Illuminated pushbutton actuator, mounting hole Ø 16 mm, snap-action switching system, 3NO (Normally Open) +3NC (Normally Closed) gold contacts, momentary and maintained switching action. T1 3/4 MG LED for illumination, front bezel and lens not included!
Select necessary components for complete pushbutton
Contact block | Fixing nut | Actuator | LED | Front bezel | Lens |
Included in price | Option | Must be ordered! |
Characteristics
The modular 16 mm Swisstac Series is particularly suited for:
- Raised design
- PCB mounting
The modular design of this series caters to a broad range of applications and combinations.
Functions
The series incorporates the following functions:
- Indicator
- Pushbutton
- Illuminated pushbutton
- E-STOP switch
- Stop switch
- Mushroom-head pushbutton
- Keylock switch
- Selector switch
- Buzzer
Market segments
The EAO Series Swisstac is especially suited for applications in the segments:
- Public transportation
- Machinery and Automation
- Construction machines and special-purpose vehicles
- Lifting and moving
- Panel building
Select necessary components for complete pushbutton
Contact block | Fixing nut | Actuator | LED | Front bezel | Lens |
Included in price | Option | Must be ordered! |
Large range of Front bezels and Lens available: Ø18mm, Ø24mm, 18x18mm, 18x24mm, 24x24mm
- Series
- EAO Series 55 (Swisstac)
- Product type
- Pushbutton
- Mounting dimensions
- Ø16mm
- Gender
- 3 NO + 3 NC
- Maximum current /contact (A)
- 5A @ 24 .. 75V, 0.5A @ 250V
- Termination Style
- Soldering and pluggable 2.8 x 0.5mm
- IP degree of protection
- IP40 / IP65 (determined by lens)
- Switching action
- Maintained action
Momentary action - Contact material
- Silver with gold plating
- Life Expectancy
- 2 million mechanical operations
