Series 84 EAO, indicator plastic black, mounting hole Ø22.5mm, momentary, IP40 - IP67
zoom_out_map
chevron_left chevron_right

NewNot available

EAO 84-0100.0, Indicator actuator plastic black, mounting hole Ø22.5mm, IP67

EAO 84-0100.0, Indicator actuator, mounting hole Ø 22.5 mm, plastic black, IP67 front protection. Indicator element and lens not included!

Select necessary components for complete indicator

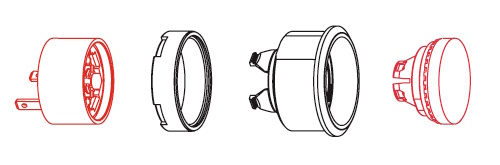

Illumination element Fixing nut        Actuator Lens
Must be ordered! Included in price Must be ordered!

Quantity Unit price You Save
5 lei42.75 lei11.25
15 lei40.50 lei67.50
30 lei38.25 lei202.50

lei45.00 Tax included

lei37.82 Tax excluded

block Not available
compare Compara help_outlineAsk about product
EAO 84-0100.0, Indicator actuator plastic black, mounting hole Ø22.5mm, IP67

EAO 84-0100.0, Indicator actuator plastic black, mounting hole Ø22.5mm, IP67

EAO 84-0100.0, Indicator actuator, mounting hole Ø 22.5 mm, plastic black, IP67 front protection. Indicator element and lens not included!

Select necessary components for complete indicator


Illumination element Fixing nut        Actuator Lens
Must be ordered! Included in price Must be ordered!

I accept privacy policy rules

Delivery from stock
Secure Online Payment
Description


The visually appealing series has particularly impressive and innovative illumination options. Different illuminations in the same switching element enable multiple status displays. This saves you space and costs while enabling additional actuators and indicators.

Series 84 is particularly valuable in harsh environments. Typical application areas:

  • Machinery
  • Measurement and control engineering
  • Lifting and handling equipment
  • Process automation
  • Special vehicles
  • Ticketing machines
  • Medical equipment

Illuminated texts and symbols

  • Illuminable ISO standard symbols such as "On/Off" and "Standby". Symbols can be illuminated in red, green, yellow, orange, blue, white or with bi-colour version in red/green
  • Resistant text and symbol inscriptions
  • Almost all symbols and texts possible

Advantages

  • Attractive design and reliable operation
  • IP67 front protection
  • Powerful, consistent illumination with innovative technologies
  • Animated illumination options for a wide variety of potential applications
  • Available with soldered, plug, PCB and flat ribbon cable terminals

Functions

  • Pushbutton
  • Illuminated pushbutton
  • Indicator
  • Capacitive buttons with IO-Link configurability

Front protection

  • IP40
  • IP65
  • IP67
  • IP69K

Mounting cut-outs

  • Ø 22 mm
  • Ø 22 mm
  • Ø 30 mm

Terminal

  • Soldering/plug-in terminal
  • PCB
  • Cable
  • M12

Markings

  • Engraving
  • Laser marking
  • Hot stamping
  • Pad printing
  • Screen-print
  • Milling
  • Illuminated symbols
Data sheet
EAO
EAO 8401000
Series
EAO Series 84
Product type
Actuator
Material
Plastic black
Mounting dimensions
Ø22.5mm
IP degree of protection
IP67
Important!

1. The prices displayed on the site, including special offers, are valid only for the products in stock, within the available limit!

2. Customized products (eg cables cut to the required length) cannot be refunded and cannot be returned!

3. The images of the products presented on the site are for information purposes only and may differ from the real products!

4. Micronix Plus SRL reserves the right to change the prices and specifications of the products without prior notice.
