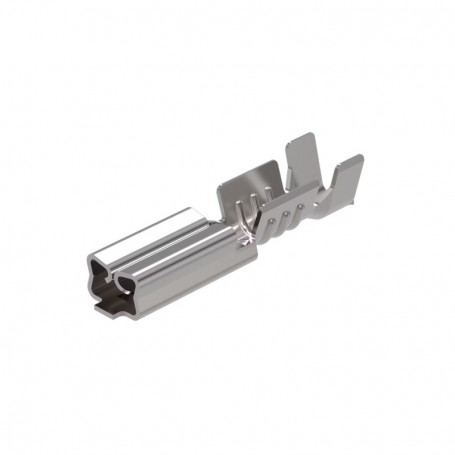

EAO 84-9420, Flat receptacle for 2.8 x 0.8mm terminals

The visually appealing series has particularly impressive and innovative illumination options. Different illuminations in the same switching element enable multiple status displays. This saves you space and costs while enabling additional actuators and indicators.

Series 84 is particularly valuable in harsh environments. Typical application areas:

• Machinery
• Measurement and control engineering
• Lifting and handling equipment
• Process automation
• Special vehicles
• Ticketing machines
• Medical equipment

Illuminated texts and symbols

• Illuminable ISO standard symbols such as "On/Off" and "Standby". Symbols can be illuminated in red, green, yellow, orange, blue, white or with bi-colour version in red/green
• Resistant text and symbol inscriptions
• Almost all symbols and texts possible

Advantages

• Attractive design and reliable operation
• IP67 front protection
• Powerful, consistent illumination with innovative technologies
• Animated illumination options for a wide variety of potential applications
• Available with soldered, plug, PCB and flat ribbon cable terminals

Functions

• Pushbutton
• Illuminated pushbutton
• Indicator
• Capacitive buttons with IO-Link configurability

Front protection

• IP40
• IP65
• IP67
• IP69K

Mounting cut-outs

• Ø 22 mm
• Ø 22 mm
• Ø 30 mm

Terminal

• Soldering/plug-in terminal
• PCB
• Cable
• M12

Markings

• Engraving
• Laser marking
• Hot stamping
• Pad printing
• Screen-print
• Milling
• Illuminated symbols
