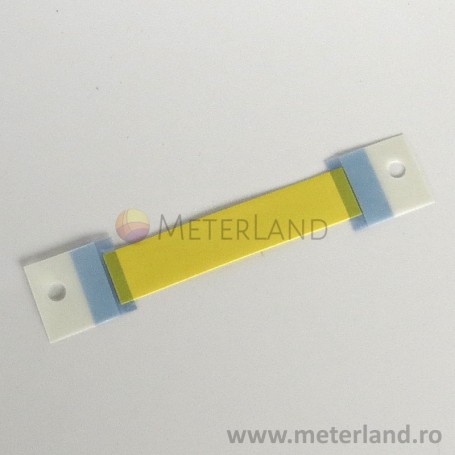

Raychem TMS-SCE-1/4-2.0-4, Heat-Shrinkable Printable Polyolefin Tubing, Yellow
Raychem TMS-SCE-1/4-2.0-4, heat-shrinkable printable polyolefin tubing, flexible, flame-retardant, general purpose, chemical and abrasion resistant, operating temperature range -55 – 135 °C [-67°F to 275°F]. Heat shrink identification marker sleeving, for the identification of wire and cables.
Raychem TMS-SCE Military Grade, Heat Shrink Identification Marker Sleeving, for the identification of wire and cables.
Made from durable, flame retarded, radiation cross linked heat shrinkable polyolefin. Supplied in ‘ladder format’, sleeves are presented for ease of printing and kitting.
TMS-SCE is a thin wall, light weight, fast recovery 3:1 shrink ratio sleeve, allowing the customer to cover a wide range of cable diameters.
TMS-SCE-2X is a thicker, rugged wall, 2:1 shrink ratio sleeve, which can aid with handling and installation.
Suitable for a wide variety of applications, including aerospace, military, industrial and energy. Marker sleeves meet the mark permanence requirements of AS5942 and MIL 202 Method 215
TMS-SCE meets the material performance requirements of the AMS SAE DTL 23053/5 specification.
TMS-SCE-2X sleeves are fabricated from AMS SAE DTL 23053/5 class 1 and 3 tubing.
Raychem TMS-SCE tubes are designed to be used in conjunction with other System 25 components such as 202K, 222K heat-shrinkable molded parts, DR-25 tubing and S1125 adhesive, providing a complete cable harness system capability.
TIME SAVINGS
• Optimized interior geometry speeds installation time
• Can be laser marked for superior performance
RUGGED
• -55°C to 135°C temperature range
• Self-extinguishing, non-flame propagating
COMPATIBLE
• Part of System 25 harnessing components
• Meets the requirements of UL E35586, CSA LR31929, MIL AMS-DTL-23053/5, VDE 0341 Pt 9005
APPLICATIONS
• Military ground systems
• Aerospace
• Marine
- Product type
- Heat Shrinkable Label
- Material
- Polyolefin
- Operating temperature range (°C)
- -55 ... +135 °C
- H Dia. as supplied (mm)
- 6.35 mm (0.250'')
- J Dia. (Max) , after unrestricted recovery (mm)
- 2.11 mm (0.083'')
- Adhesive Pre-Coat
- No
