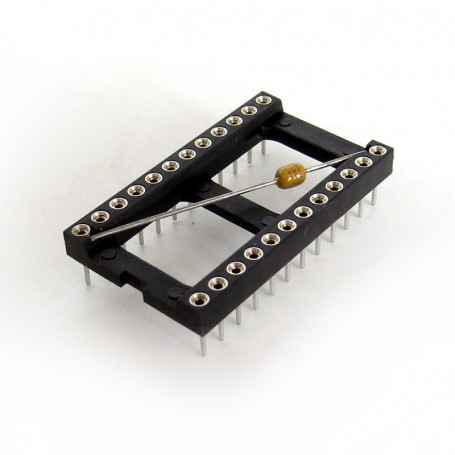

Fischer Elektronik DIL K 24MZ, High-precision socket DIL-IC, 24 contacts tin-plated, pitch 2.54mm, with 100nF capacitor
zoom_out_map
chevron_left chevron_right
New

Fischer Elektronik DIL K 24MZ, High-precision socket DIL-IC, 24 contacts tin-plated, pitch 2.54mm, with 100nF capacitor

Fischer Elektronik DIL K 24MZ, female high-precision DIL-IC socket with 2 rows, 24 contacts tin-plated, grid spacing 2.54mm, with 100nF decoupling capacitor


  • A: 15.24 mm
  • B: 17.7 mm
  • C: 11.6 mm
  • D: 30.6 mm
Quantity Unit price You Save
3 lei11.40 lei1.80
5 lei11.04 lei4.80
15 lei10.20 lei27.00
25 lei9.60 lei60.00
40 lei9.00 lei120.00

lei12.00 Tax included

lei10.08 Tax excluded

Delivery 1-2 working days
check Delivery from stock
compare Compara help_outlineAsk about product
Fischer Elektronik DIL K 24MZ, High-precision socket DIL-IC, 24 contacts tin-plated, pitch 2.54mm, with 100nF capacitor

Fischer Elektronik DIL K 24MZ, High-precision socket DIL-IC, 24 contacts tin-plated, pitch 2.54mm, with 100nF capacitor

Fischer Elektronik DIL K 24MZ, female high-precision DIL-IC socket with 2 rows, 24 contacts tin-plated, grid spacing 2.54mm, with 100nF decoupling capacitor


  • A: 15.24 mm
  • B: 17.7 mm
  • C: 11.6 mm
  • D: 30.6 mm

I accept privacy policy rules

Delivery from stock
Secure Online Payment
Description

The linecard in the range of Fischer Elektronik sockets and plugs contains different versions of DIL IC’s with abstraction key, for LED displays, for customer specific assembly of components, in THT soldering technique and SMD soldering technique as well as for PLCC devices. Furthermore sockets for TO 3, TO 5 and TO 18 case designs and sockets for power transistors in TO 3 design are offered. Moreover different sockets for oscillating crystals are in the product range. This product range is completed by different single contacts, jumper and coding links. The surfaces can be bought in tin- or gold-plated.

Data sheet
Fischer DILK24MZ
12 Items
Gender
Female
Maximum current /contact (A)
1.5A
Number of contacts
24
Operating temperature range (°C)
-40°C... +200°C (260°C for 10 s)
Surface of contacts
Tin-plated contacts
Number of contact rows
2 (DIL design)
Distance between contacts
2.54 mm
Contact size (mm)
Ø 0.5 mm
Case type
DIL
