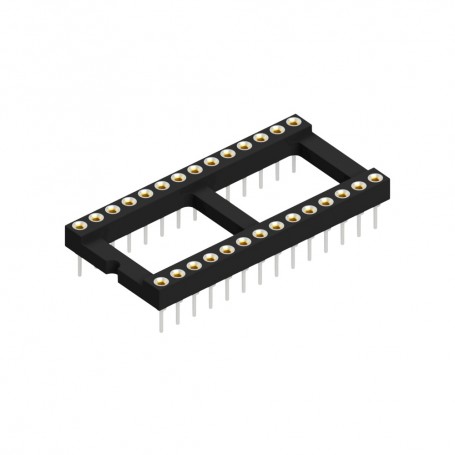

Fischer Elektronik DIL 28MZ, High-precision socket DIL-IC, 28 contacts tin-plated, pitch 2.54mm
Fischer Elektronik DIL 28MZ, female high-precision DIL-IC socket with 2 rows, 28 contacts tin-plated, grid spacing 2.54mm
- A: 15.24 mm
- B: 17.7 mm
- C: 11.3 mm
- D: 35.7 mm
The linecard in the range of Fischer Elektronik sockets and plugs contains different versions of DIL IC’s with abstraction key, for LED displays, for customer specific assembly of components, in THT soldering technique and SMD soldering technique as well as for PLCC devices. Furthermore sockets for TO 3, TO 5 and TO 18 case designs and sockets for power transistors in TO 3 design are offered. Moreover different sockets for oscillating crystals are in the product range. This product range is completed by different single contacts, jumper and coding links. The surfaces can be bought in tin- or gold-plated.
- Gender
- Female
- Maximum current /contact (A)
- 1.5A
- Number of contacts
- 28
- Operating temperature range (°C)
- -40°C... +200°C (260°C for 10 s)
- Surface of contacts
- Tin-plated contacts
- Number of contact rows
- 2 (DIL design)
- Distance between contacts
- 2.54 mm
- Contact size (mm)
- Ø 0.5 mm
- Case type
- DIL
