Optris CT LT02, Smallest infrared pyrometer, 2:1, temperature range [-50 .. 600°C]

The pyrometer OPTRIS CT LT  is equipped with one of the world’s smallest infrared sensors with a high optic resolution for precise non-contact temperature measurement. Additionally, it offers a high variability due to selectable analog outputs as well as several digital interfaces in the electronics box.

Features:

• One of the smallest infrared sensors worldwide with 2:1 optical resolution
• Rugged and usable up to 130°C ambient temperature without cooling
• Separate electronics with easy accessible programming keys and LCD backlit display
• Selectable analog output: 0/4-20 mA, 0-5 V, 0-10 V, thermocouple type K or J
• Optional USB, RS485, RS232 interface, relay outputs (2 x optically isolated), CAN-Bus, Profi bus DP, Ethernet
• Installation of up to 32 sensing heads
• Optional Explosion proof version (ATEX): CTex

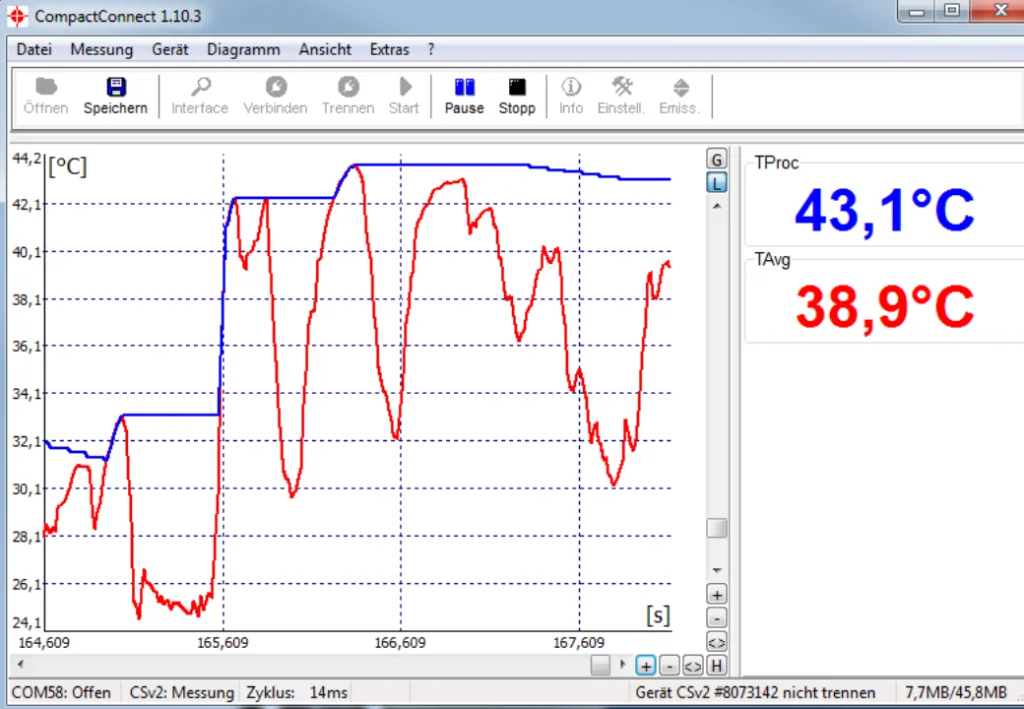

Compact Connect Software

Real-time data, full device parametrization, suitable for IR Thermometers of Optris CS, CSmicro Series and CT Series

• No additional cost
• No limitation in licensing
• Modern software with intuitive user interface
• Complete parametrization of sensors via Software
• Setup of multiple sensors in different windows
• Data recording for detailed analysis and documentation

Optional accessories: see below You might also like

Measurement Specifications

• Temperature range (scalable via software):
  -50°C … 975°C (LT22)
  -50°C … 600°C (LT15)
  -50°C … 600°C (LT02)

• Spectral range: 8 to 14 µm
• Optical resolution (90% energy):
  22:1
  15:1
  2:1

• CF-lens (optional):
  0.6 mm @ 10 mm (LT22)
  0.8 mm @ 10 mm (LT15)
  2.5 mm @ 23 mm (LT02)


• System accuracy  *1) *2) (at ambient temperature 23 ± 5°C): ± 1% or ± 1°C
• Repeatability  *1) *2) (at ambient temperature 23 ± 5°C): ± 0.5% or ± 0.5°C
• Temperature resolution (display): 0.1 K
• NETD *2) *3):
  0.05 K (LT22/LT15)
  0.1 K (LT02)


• Response time (95%): 150 ms
• Emissivity / Gain (adjustable via programming keys or software): 0.100 – 1.100
• Transmissivity (adjustable via programming keys or software): 0.100 – 1.100
• Signal processing (parameter adjustable via software): peak hold, valley hold, average, extended hold function with threshold and hysteresis

General Specifications:

• Environmental rating: IP 65 (NEMA-4)
• Ambient temperature:
  sensing head: -20°C … 180°C (130°C at LT02)
  electronics: -20°C … 85°C  *4)


• Storage temperature:
  sensing head: -40°C … 180°C (130°C at LT02)
  electronics: -40°C … 85°C


• Relative humidity: 10 – 95%, non condensing
• Shock: IEC 60068-2-27 (25G and 50G)
• Vibration:IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise)
• Weight:
  sensing head 40g,
  electronics 420 g

Electrical Specifications

• Output / analog:
  channel 1: 0/4 – 20 mA, 0-5/10 V, thermocouple J, K
  channel 2: sensind head temperature (-20°C – 180°C as 0-5 V or 0-10 V), alarm output
• Output / alarm: 24 V / 50 mA (open collector)
• Optional: relay: 2 x 60 V DC/42 V ACeff; 0.4 A; optically isolated
• Output / digital (optional): USB, RS232, RS485 (optional), Modbus RTU, Profibus DP, Ethernet
• Output impedances:
  mA max. 500 Ω (with 8-36 V DC)
  mV min. 100 kΩ load impedance
  thermocouple 20 Ω
• Inputs: programmable functional input for external emissivity setting /ambient temperature compensation, trigger (reset of hold functions)
• Cable length: 1 m (standard), 3 m, 8 m, 15 m
• Power supply: 8-36 V DC
• Current draw: max. 100 mA

Versions

Part number: temperature range / spectral range / optics / max. ambient temperature / cable length

OPTCTLT02: -50-600 °C / 8-14 μm / 2:1 / 130°C / 1 m cable

OPTCTLT15: -50-600 °C / 8-14 μm / 15:1 / 180°C / 1 m cable

OPTCTLT15CF: -50-600 °C / 8-14 μm / 15:1 / 180°C / 1 m cable; with CF optics: 3 mm @ 50 mm (head length: 32 mm)

OPTCTLT20: -50-975 °C / 8-14 μm / 22:1 / 180°C / 1 m cable

OPTCTLT20CF: -50-975 °C / 8-14 μm / 22:1 / 180°C / 1 m cable; with CF optics: 2.5 mm @ 50 mm (head length: 32 mm)

Notes:

• *1) Whichever is greater
• *2) At object temperatures > 0°C, Ɛ = 1
• *3) At time constant 200 ms and TObj 25°C
• *4) The LCD displays capacity may be limited at ambient temperatures below 0 °C.
