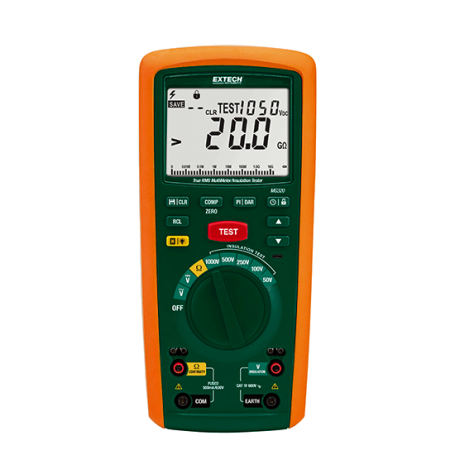

Extech MG320, CAT IV Insulation Tester/True RMS MultiMeter
EXTECH MG320 Combines a portable 20GΩ/1000V Insulation Tester with a True RMS MultiMeter.
Insulation tester includes PI/DAR modes, programmable timer, and a comparator for custom test configurations and quick results. Multimeter functions include AC/DC Voltage, Resistance, and Continuity Test.
- Voltage range (V)
- max. 600 ACV/DCV (multimeter)
- Test Voltages (V)
- 50 V, 100 V, 250 V, 500 V, 1000 V (insulation)
- Resistance range (Ω)
- 50 MΩ, 100 MΩ, 200 MΩ, 500 MΩ, 2000 MΩ, 1 GΩ, 10 GΩ, 20 GΩ (Insulation Resistance)
max. 20 KΩ (multimeter) - Measuring functions
- Low Resistance measurement with Zero function
Polarization Index (PI) si Dielectric Absorption Ratio (DAR) - Memory
- 99 readings
- Other functions
- Continuitaty, Programmable Timer, Comparison Mode
- Dimensions (L x l x H)
- 225 x 103 x 59 mm
- Weight
- 700 g
