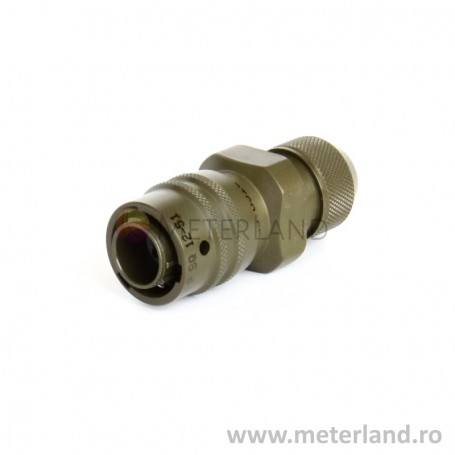

Amphenol PTG-06SE-14-12P-SQ, Cable Plug Connector, 12 male crimp contacts
Amphenol PTG-06SE-14-12P-SQ, cable mounting plug MIL-C-26482 metal circular connector with 12 male gold plated crimp contacts (4 contacts size #16 and 8 contacts size 20). SQ type backshell included.
Amphenol PT series connectors are general purpose, environment resistant , miniature circular connectors with three point bayonet coupling and five-key polarisation. Designed to meet the requirements of MIL-C-26482, Series I solder type, these connectors are widely used in applications calling for quick disconnect connectors.
PT connectors are intermateable and interchangeable with all MIL-C-26482 connectors, whether solder or crimp type.
These connectors are used worldwide in military and industrial applications and are available in a variety of sizes, styles and configurations.
- Series
- MIL-C-26482
- Product type
- Plug Connector
- Coupling mode
- Bayonet coupling
- Enclosure size
- #14
- Gender
- Male
- Maximum current /contact (A)
- 7.5A
13A - Number of contacts
- 12
- Insert Arrangement
- 14-12 (8 gold plated contacts size #20 and 4 gold plated contacts size #16)
- Wire cross-section (mm²/AWG)
- 0,5 .. 1,5 mm² / AWG 20 ..16
0,25 .. 0,5 mm² / AWG 24 ..20 - Termination Style
- Crimping
- IP degree of protection
- IP65
