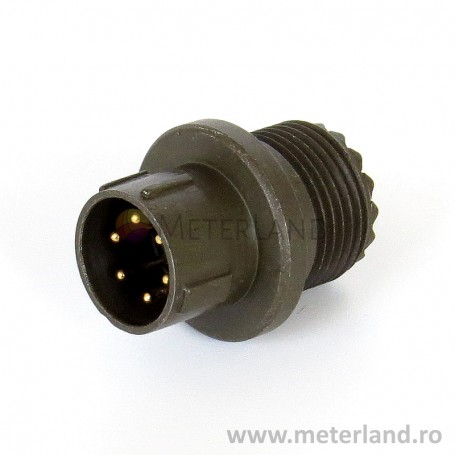

Amphenol MS108137, Connector plug insertion only for 62IN-56T-10-6P
Amphenol MS108137 insertion only for Amphenol 62IN-56T-10-6P, connector plug MIL-C-26482 metal circular connector with 6 male gold plated solder contacts. Can be used like hardware security key.
Amphenol 62IN series connectors are general purpose, environment resistant , miniature circular connectors with three point bayonet coupling and five-key polarisation. Designed to meet the requirements of MIL-C-26482, Series I solder type, these connectors are widely used in applications calling for quick disconnect connectors.
62IN connectors are intermateable and interchangeable with all MIL-C-26482 connectors, whether solder or crimp type.
These connectors are used worldwide in military and industrial applications and are available in a variety of sizes, styles and configurations.
- Series
- MIL-C-26482
- Product type
- Plug Connector
- Coupling mode
- Bayonet coupling
- Enclosure size
- #10
- Gender
- Male
- Maximum current /contact (A)
- 7.5A
- Number of contacts
- 6
- Insert Arrangement
- 10-6 (6 gold plated solder contacts size #20)
- Wire cross-section (mm²/AWG)
- 0,25 .. 0,5 mm² / AWG 24 ..20
- Termination Style
- Soldering
- IP degree of protection
- IP65
