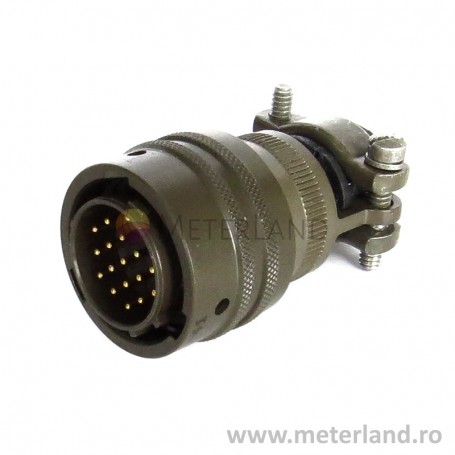

Amphenol PT-06E-14-18P-SR, Cable Plug Connector, 18 male solder contacts
Amphenol PT-06E-14-18P-SR, cable mounting plug MIL-C-26482 metal circular connector with 18 male gold plated solder contacts size #20. SR type backshell included.
Amphenol PT series connectors are general purpose, environment resistant , miniature circular connectors with three point bayonet coupling and five-key polarisation. Designed to meet the requirements of MIL-C-26482, Series I solder type, these connectors are widely used in applications calling for quick disconnect connectors.
PT connectors are intermateable and interchangeable with all MIL-C-26482 connectors, whether solder or crimp type.
These connectors are used worldwide in military and industrial applications and are available in a variety of sizes, styles and configurations.
- Series
- MIL-C-26482
- Product type
- Plug Connector
- Coupling mode
- Bayonet coupling
- Enclosure size
- #14
- Gender
- Male
- Maximum current /contact (A)
- 7.5A
- Number of contacts
- 18
- Insert Arrangement
- 14-18 (18 gold plated contacts size #20)
- Wire cross-section (mm²/AWG)
- 0,25 .. 0,5 mm² / AWG 24 ..20
- Termination Style
- Soldering
- IP degree of protection
- IP65
