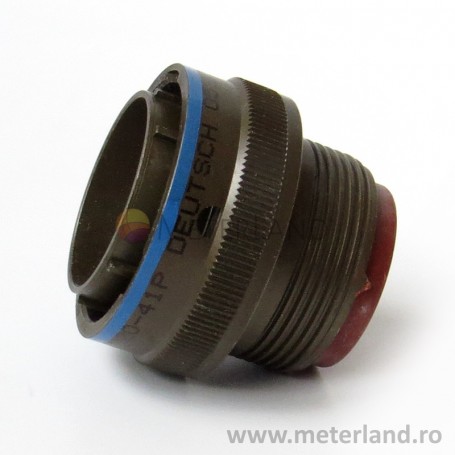

Deutsch MS3476W20-41P, Cable Connector, Plug, 41 male crimp contacts
Deutsch MS3476W20-41P, cable mounting connector, plug MIL-C-26482 Series II metal circular connector with 41 male gold plated crimping contacts size #20.
Deutsch MS347x series connectors are general purpose, environment resistant, miniature circular connectors with three point bayonet coupling and five-key polarisation. Designed to meet the requirements of MIL-C-26482 Series II, these connectors are widely used in applications calling for quick disconnect connectors.
MS347x connectors are intermateable and interchangeable with all MIL-C-26482 connectors, whether solder or crimp type.
These connectors are used worldwide in military and industrial applications and are available in a variety of sizes, styles and configurations.
- Series
- MIL-C-26482
- Product type
- Plug Connector
- Coupling mode
- Bayonet coupling
- Enclosure size
- #20
- Gender
- Male
- Maximum current /contact (A)
- 7.5A
- Number of contacts
- 41
- Insert Arrangement
- 20-41 (41 gold plated crimping contacts size #20)
- Wire cross-section (mm²/AWG)
- 0,25 .. 0,5 mm² / AWG 24 ..20
- Termination Style
- Crimping
