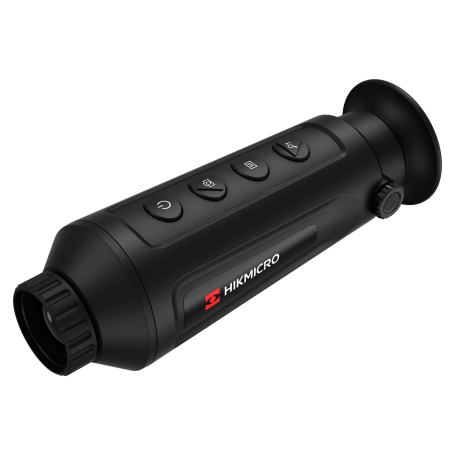

HIKMICRO LYNX Pro LH19, Thermal imaging monocular
HIKMICRO LYNX Pro LH-19 handheld thermal monocular camera is equipped with a 384 × 288 infrared detector and a 1280×960 LCOS display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, searching and rescuing, hiking, travel, and hunting, etc.
HIKMICRO LYNX Pro LH19 handheld thermal monocular camera is equipped with a 384 × 288 infrared detector and a 1280×960 LCOS display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, searching and rescuing, hiking, travel, and hunting, etc.
Key Features
● 384 × 288 resolution, 12 μm, high sensitivity detector
● Adaptive AGC, DDE, 3D DNR, NETD less than 35 mk (@25°C), F#=1.0
● 1280 × 960 resolution 0.4-inch LCOS display
● Built-in rechargeable lithium battery
● Up to 7.5 hours continuous running
● Wi-Fi hot spot
● Type-C Interface
.
Stadiametric rangefinder
- IR Detector Resolution (pixels)
- 384 x 288
- Thermal Sensitivity / NETD (°C, mK)
- 35 mK @ 25°C, F #1.0
- Field of View (HxV)
- 13.8° × 10.4°
- Image Frequency (Hz)
- 50 Hz
- Measuring functions
- Stadiametric rangefinder
- Memory
- internal 8 GB, snapshot / video recording
- Display
- LCOS display, ( 1280 × 960 pixels )
- Image processing
- 3D DNR (3D Digital Noise Reduction)
Adaptive AGC (Automatic Gain Control)
DDE™ (Digital Detail Enhancement) - Detection distance (human size target) (1.5 pixeli / 0.75m)
- 897 m
- Interfaces
- USB, WiFi
- Power
- Built-in rechargeable Lithium battery ( continuous running 7.5h @ 20 °C, WiFi OFF )
- Operating temperature range (°C)
- –20 .. +55 °C
- IP degree of protection
- IP67
- Dimensions (L x l x H)
- 171 × 61 × 57 mm
- Weight
- 310 g
