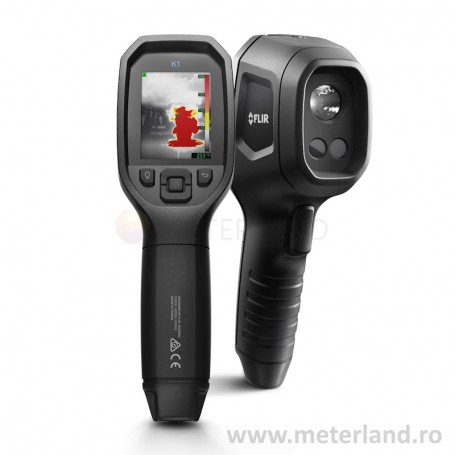

FLIR K1, Situational Awareness Camera (-10 .. 400°C)
The FLIR K1 is a rugged, compact 160x120 thermal camera that serves as an extra set of eyes on the fire scene, allowing commanders, officers, and inspectors to quickly complete a thorough 360° assessment in total darkness and through smoke
The FLIR K1 is a rugged, compact thermal camera that serves as an extra set of eyes on the fire scene, allowing commanders, officers, and inspectors to quickly complete a thorough 360° assessment in total darkness and through smoke. With a bright, integrated flashlight, the FLIR K1 illuminates the scene to help the user steer and manage the crew more effectively. It also displays 160 × 120 pixel thermal images that help users gain additional situation awareness that is not possible with the naked eye.
The FLIR K1 is pocket-portable or attaches easily to a belt using the included pouch – making it easy to have on-hand for investigations around buildings, industrial settings, traffic accidents, wildland calls, or search and rescue activities.
ENHANCE SITUATIONAL AWARENESS
Quickly assess the scene in total darkness, through smoke, and never lose line of sight.
DOCUMENT FINDINGS CONVENIENTLY
Gather compelling evidence and save up to 10,000 sets of radiometric thermal and visual images for simple reporting.
RUGGED AND EASY TO USE
The water-resistant K1 withstands a 2-meter drop onto concrete, and is lightweight enough to attach to gear.
- IR Detector Resolution (pixels)
- 160 x 120
- Thermal Sensitivity / NETD (°C, mK)
- ≤ 100 mK
- Field of View (HxV)
- 57° × 44°
- Image Frequency (Hz)
- 8.7 Hz
- Focus
- Focus free
- Temperature range (°C)
- -10 ... +400 °C
- Accuracy
- ±5 °C .. ±10 %
- Measuring functions
- Central Spot
- Memory
- internal 3GB (10000 images)
- Digital Camera Resolution (pixels)
- 2 MP, LED 300lm lamp (flashlight)
- Display
- 2.4" (61 mm), TFT color
- Image processing
- MSX™ (Multi-Spectral Dynamic Imaging)
- Interfaces
- USB
- Power
- Li-Ion (Battery is charged inside the camera)
- Drop tested
- 2 m
- Operating temperature range (°C)
- –10°C .. +45°C standard, flashlight ON
–10°C .. +55°C standard, flashlight OFF
–10°C .. +90°C @ 10 minutes, flashlight ON
–10°C .. +115°C @ 2 minutes, flashlight ON - IP degree of protection
- IP 67 (IEC 60529)
- Dimensions (L x l x H)
- 208 x 65 x 85 mm
- Weight
- 410 g
