HIKMICRO G41, Handheld Thermography Camera (-20..650°C)

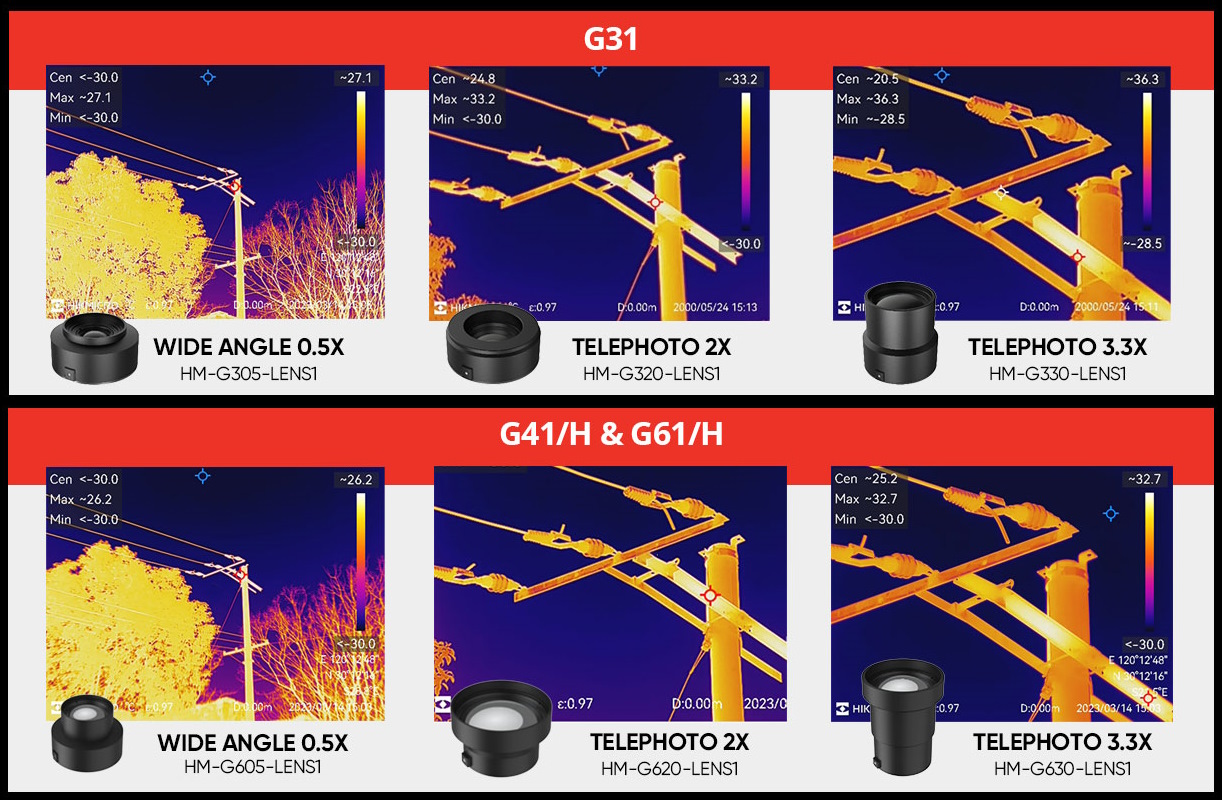

Hikmicro G41 advanced handheld camera is equipped with a 480 x 360 high resolution thermal detector, 8MP visual camera and has a wide temperature measurement range -20 to 650°C. Additional features: multiple interchangeable auto-focus lens, laser distance meter, large 4.3" LCD touch screen.
-- Replaces G40 --
Hikmicro G41 Handheld Thermography Camera is specially designed for temperature measurement. It’s equipped with a 480 × 360 resolution thermal detector. It helps the staff to quickly find the high-temperature targets in the environment. Meanwhile, it provides assistance with decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc.
Key Feature
● High sensitivity thermal module with 480 × 360 resolution
● Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
● Supports multiple palettes
● High quality optical module with 8 MP resolution
● Bi-spectrum image fusion, picture-in-picture preview
● Wide temperature measurement range: -20°C to 650°C
● High temperature measurement accuracy: Up to ± 2°C, ± 2%
● High resolution 800 × 480 resolution 4.3'' LCD touch display
● Long-distance laser distance meter
● LED light supplement makes the device a torch in required scenarios
● Supports 8x continuous digital zoom
- IR Detector Resolution (pixels)
- 480 x 360
- Thermal Sensitivity / NETD (°C, mK)
- 35 mK
- Field of View (HxV)
- 18.7° x 14°
- F/#
- 1.0
- Image Frequency (Hz)
- 50 Hz
- Focus
- Continuous autofocus / one-shot autofocus, manual
- Temperature range (°C)
- -20 .. 650 °C
- Accuracy
- Max. (± 2°C, ± 2%)
- Measuring functions
- Center Spot, Hot Spot, Cold Spot, User-definable: 10 spots,1 line, 5 rectangles and 5 circles
- Memory
- microSD 64GB
- Spectral range (μm)
- 7.5 .. 14 μm
- Display
- 800 x 480 pixels, 4.3" LCD Touch Screen
- Ilumination
- LED lamp
- Other functions
- - GPS
- digital compass
- laser spot, laser distance meter (indoor distance: 50 m (164 ft))
- multilanguage menu
- text comments
- tripod mounting
- voice notes - Flux video
- UVC Cast
- Interfaces
- 802.11 b/g/n (2.4 GHz and 5 GHz)
Bluetooth 4.2
USB Type-C - Power
- Rechargeable Internal Li-Ion Battery
- Drop tested
- 2 m IEC 60068-2-31
- Operating temperature range (°C)
- -20 .. 50 °C
- IP degree of protection
- IP54
- Dimensions (L x l x H)
- 284.7 mm × 120.6 mm × 124.5 mm
- Weight
- 1058 g
