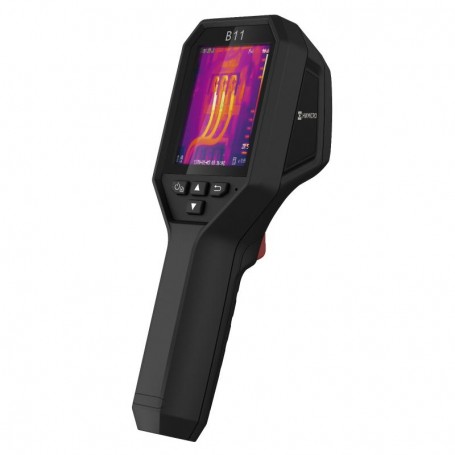

HIKMICRO B11, Handheld Thermography Camera (-20..+550°C)
Thermal imaging camera with IR resolution 192x144 pixels, 6h continuous operating time, Wi-Fi connectivity to quickly share your images, 3.2’’ LCD display and object temperature range -20 .. +550°C. Macro lens available!
HIKMICRO B11 is designed for temperature measurement to find invisible faults. It’s equipped with a 192 x 144 resolution HIKMICRO thermal detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F) which meets most situation. It helps the staff to quickly find the fault according to accurate temperature measurement of high temperature targets in the environment. Meanwhile it provides assistant decision and ensure safety. The device is mainly applied to various industries, such as building, HVAC, auto industry, etc.
Key Feature
● Thermal resolution: 192 × 144 (27,648 pixels)
● NETD : < 40 mK (@ 25°C,F#=1.0)
● Temperature measurement range : -20°C to 550°C (-4°F to 1022°F)
● Accuracy: Max (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
● Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
● 25 Hz image frequency
● 3.2’’ LCD screen display
● Up to 6 hours continuous running
● Macro lens available (option)
- IR Detector Resolution (pixels)
- 192 × 144
- Thermal Sensitivity / NETD (°C, mK)
- 40 mK
- Field of View (HxV)
- 27.8° × 37.2°
- Distanta focala (mm)
- 3.6 mm
- F/#
- 1.0
- Image Frequency (Hz)
- 25 Hz
- Focus
- Focus free
- Temperature range (°C)
- -20 .. 550 °C
- Accuracy
- Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C
- Measuring functions
- Center Spot, Hot Spot, Cold Spot, Isotherm. User-definable: 3 spots
- Memory
- Built-in 16 GB flash memory
- Spectral range (μm)
- 8 .. 14 μm
- Digital Camera Resolution (pixels)
- Display
- 3.2’’ LCD, (320 x 240)
- Ilumination
- LED lamp
- Other functions
- - multi-language menu
- tripod mounting - Interfaces
- USB Type-C
Wi-Fi 802.11 b/g/n - Power
- Rechargeable Internal Li-Ion Battery
- Drop tested
- 2 m
- Operating temperature range (°C)
- -10 .. 50 °C
- IP degree of protection
- IP54
- Dimensions (L x l x H)
- 221.7 × 73.5 × 123.8mm
