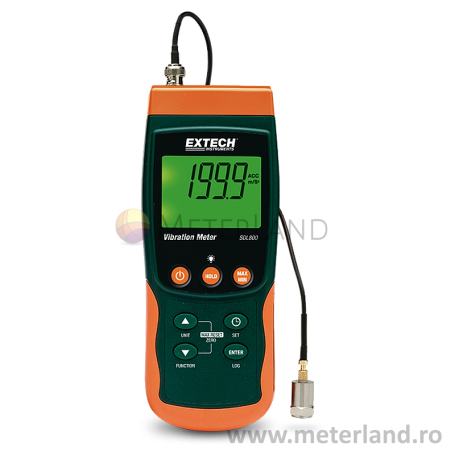

Extech SDL800, Vibration Meter and Datalogger
EXTECH SDL800 measures and datalogs vibration using a remote vibration sensor with magnetic adapter on 47.2"(1.2m) cable. It offers a wide frequency range of 10Hz to 1kHz with basic accuracy of ±(5% + 2 digits). Manually store 99 readings or continuously datalog using a SD memory card, which allows user to easily transfer collected data to a PC for further analysis as an Excel format.
The SDL800 measures and datalogs vibration using a remote vibration sensor with magnetic adapter on 47.2"(1.2m) cable. It offers a wide frequency range of 10Hz to 1kHz with basic accuracy of ±(5% + 2 digits). Manually store 99 readings or continuously datalog using a SD memory card, which allows user to easily transfer collected data to a PC for further analysis as an Excel format. Complete with remote sensor, magnetic mount, 6 x AA batteries, SD card, and hard carrying case.
Features ...
- Remote vibration sensor with magnetic adapter on 47.2" (1.2m) cable
- Wide frequency range of 10Hz to 1kHz
- Basic accuracy of ±(5% + 2 digits); Meets ISO2954
- RMS, Peak Value or Max Hold measurement modes
- Adjustable data sampling rate
- Offset adjustment used for zero function to make relative measurements
- Large backlit LCD
- Stores 99 readings manually and continuous datalogging via SD memory card
- Record/Recall MIN, MAX, Data Hold and Auto power off
- Complete with remote sensor, magnetic mount, 6 x AA batteries, SD card, and hard carrying case
- Acceleration (m/s²)
- 656 ft/s² , 200 m/s² , 20.39 g
- Velocity (mm/s,m/s,km/h)
- 7.87 in/s, 200 mm/s, 19.99 cm/s
- Displacement (v-v) (mm)
- 0.078 in, 2 mm (peak-to-peak)
- Frequency (Hz)
- 10Hz .. 1KHz
- Measuring functions
- MAX, MIN, HOLD, Max HOLD, Peak, RMS
- Memory
- Stores 99 readings manually and 20M readings via SD card
- Power
- 1.5V AA x 6 pcs.
- Complete with
- Remote sensor, magnetic mount, SD card, and hard carrying case
- Dimensions (L x l x H)
- 182 x 73 x 47,5 mm (instrument)
- Weight
- 599 g
